CMR 72 - 2006

CMR 72 was designed to be an evolution on CMR 51 with a primary goal of reducing weight. This was achieved with a reduction to 485 lbs. The front suspension was switched to pushrods while the rear remained pullrods. Overall grip was very high, but handling was compromised by what drivers describe as "epic understeer". Despite the dificult handling, CMR 72 was headed to our best finish but was unable to complete endurance, unable to restart due to an overheated ECU.

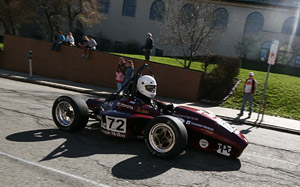

CMR 72 During Buggy Exhibition

Specifications

Body

4 piece carbon fiber body
Professional PPG paint job - Carnegie Mellon Red
Integrated taillights


Chassis

Tubular steel space frame
Strength optimized using Ansys FEA
Very-low center of gravity
Jig mounted during construction for build accuracy
Painted for corrosion resistance


Suspension

4 wheel independent suspension
Unequal non- parallel suspension links
Adjustable ride height
Adjustable shocks
CNC machined uprights
Push rods on front
Pull rods on rear


Engine

2004 Honda F4i
Performance Electronics ECU
Custom CFD optimized carbon intake, conical air filter
Custom Tri-Y exhaust header
Custom straight through muffler
Engine Redline: 13500 rpm
Max Power: 75hp

Brakes
Custom designed floating rotors
Single rotor rear braking
Custom CNC machined adjustable pedal assembly

Competition Standings

Overall: 60th of 140
Acceleration: 60th
Skidpad:40th
Autocross: 46th
Endurance: DNF
Design: 16rd
Cost: 60th
Presentation: 85th
