CMR 37 - 2007

CMR 37, our sixth car set out to improve upon CMR 72, particularly when it came to the "epic understeer." It suceeded in this area resulting in a neutral handling car that was much easier to drive. This was assisted by the switch to a barrel throttle made in house which benefitted both maximum power and the drivability of the engine. The body was designed completely in CAD before being sent to Honda for the machining of a male plug. Female molds made off of the plug and used for body production. At competition we our highest finishe ever in design, but were unable to complete endurance due to the car overheating in the hot California conditions.

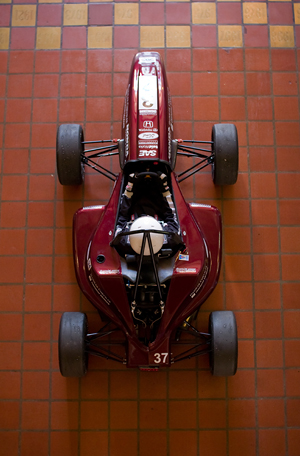

CMR 37 from above

The Team at Competition

Specifications

Body

4 piece carbon fiber body from female molds, male plug machined by Honda
Professional PPG paint job - Carnegie Mellon Red
Integrated taillight


Chassis

Tubular steel space frame
Strength optimized using Ansys FEA
Very-low center of gravity
Jig mounted during construction for build accuracy
Painted for corrosion resistance


Suspension

4 wheel independent suspension
Unequal non- parallel suspension links
Adjustable ride height
Adjustable shocks
CNC machined uprights
Push rods on all 4 corners


Engine

2006 Honda F4i
Performance Electronics ECU
Custom barrel throttle
Custom CFD optimized carbon intake, conical air filter
Equal primary length Tri-Y exhaust header
Custom muffler
Engine Redline: 13500 rpm
Max Power: 80hp

Brakes
Custom designed floating rotors
Single rotor rear braking
Custom CNC machined adjustable pedal assembly

Competition Results

Overall: 31st of 80
Acceleration: 21st
Skidpad:32nd
Autocross: 25th
Endurance: DNF
Design: 12th
Cost: 18th
Presentation: 47th
