A Case-Based Approach to Adaptive Information Filtering for the WWW

Mauro Marinilli, Alessandro Micarelli and Filippo Sciarrone Dipartimento di Informatica e Automazione Università di Roma Tre Via della Vasca Navale, 79 I-00146 Roma, Italia

email: marinil@dia.uniroma3.it - telephone: +039-06-55173205

Abstract: In this paper we present a case-based approach we have used for the realization of an Information Filtering system for the Web. The system is capable of selecting HTML/text documents, collected from the Web, according to the interests and characteristics of the user. A distinguished feature of the system is its hybrid architecture, where a sub-symbolic module is integrated into a case-based reasoner. The system is based on a user modeling component, designed for building and maintaining long term models of individual Internet users. Presently the system acts as an intelligent interface for the Web search engines. The experimental results we have obtained are encouraging and support the choice of the case-based approach to adaptive Information Filtering

Keywords: Information Filtering, User Modeling, CBR, Artificial Intelligence, Knowledge Representation

1. Introduction

The Internet has rapidly become the main route for information exchange world-wide. Besides the problem of bandwith, the growth of Internet and the World Wide Web makes it necessary for the end user to cope with the huge amount of information available on the net. Filtering information [Belkin:92] is a problem becoming increasingly relevant in information society. The issue of information filtering involves various kinds of problems, such as (i) designing efficient and effective criteria for filtering, and (ii) designing a friendly, non-obtrusive, intelligent interface to lead the user to the most interesting information, according to her/his interests. In this work we present an Information Filtering system, we have developed for selecting HTML/Text documents from the World Wide Web. The system selects the documents according to the interests (and non-interests) of the user, as desumed by the system through the interaction. To do so, the system makes use of a User Modeling ad-hoc subsystem, particularly conceived for Internet users. One distinguishing feature of the presented system is its hybrid architecture: a combination of a Case-Based Reasoner with a sub-symbolic module (here, an artificial neural network). The system has been developed in Java on a PentiumII®-based platform. The evaluation of the system is based on an empirical approach and makes use of a non-parametric statistics for testing hypotheses on the system behavior. The paper is structured as follows. In Section 2 the general architecture of the system is presented. In Section 3 we present briefly the user modeling component. In Section 4 we describe the anatomy of the Information Filtering component. Then we describe the results of the evaluation of the integrated system. In a concluding section we give some final remarks.

2. The General Architecture

The general architecture of the system is shown in Figure 1. It is composed of the following modules:

The User Model, representing the characteristics and the information needs of a particular user;
The User Modeling component, capable of dynamically building the user model, as desumed by the system through the interaction;
The External Retriever, which interfaces with AltaVista;
The Information Filtering component, which selects the relevant documents for the user, according to the content of the User Model;
The User Interface, which manages the interaction.

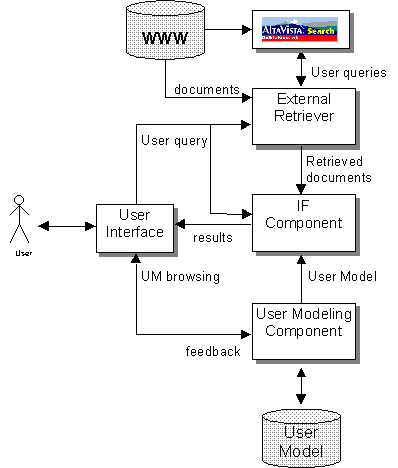

Figure 1. The General Architecture of the System.

When a user interacts with the system for the first time, her/his user model needs to be made from scratch. In order to quickly build a reliable model an interview is proposed to the user, expressing an interest score [1] for each of the domain categories, as show in figure 2. The user sets a query to the system that in turn posts it to the external WWW search engine, obtaining documents that are filtered and returned to the user. In the filtering process the systems works using two different levels of refinement, a first, coarse one, and a more elaborate step that takes place only if the first stage succeeds. During the normal usage the system offers a series of panels, being the first the filtering panel shown in figure 2. Here at the left is shown the list of documents retrieved by the search engine given the user query. each document is detailed in the right panel, where the filtering results are also reported.
For an easier usage the system automatically sorts the document lists so to help the user locating the best documents. The user browses the needed documents by double-clicking on them, and then he can express a simple feedback (as seen in the up-right window corner) among three different values: very good, good or bad, in order to ease the burden on the user as recomended in [morshi:96]. In this way the system can modify her/his user model accordingly to user's preferences. Furthermore, following [mulnig:96] a system objects browser has been provided in order to allow the user to inspect all the system's data structures with an effective graphical interface to shorten the semantic gap between the user and the system. In the next section the user modeling component is presented.

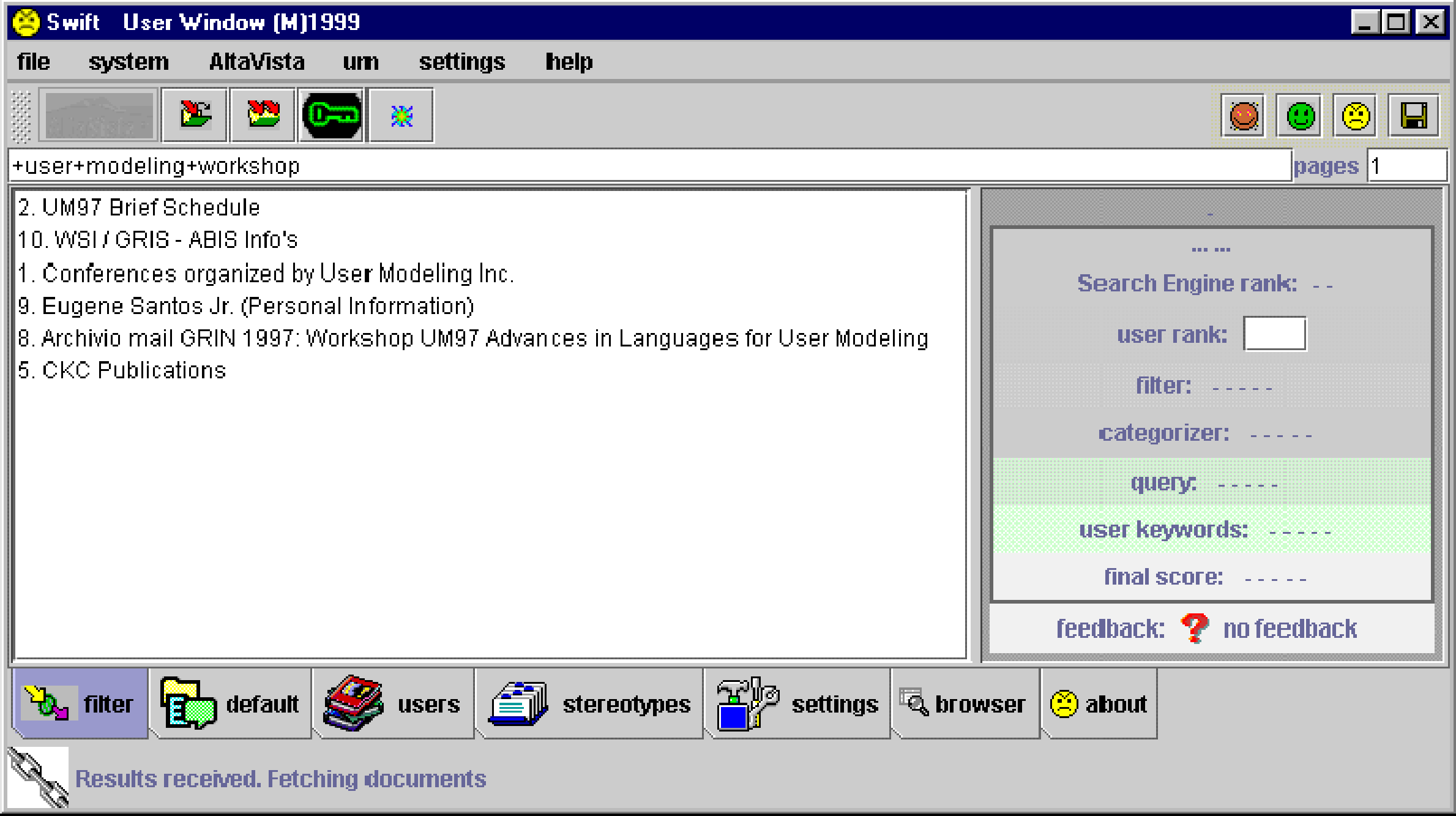

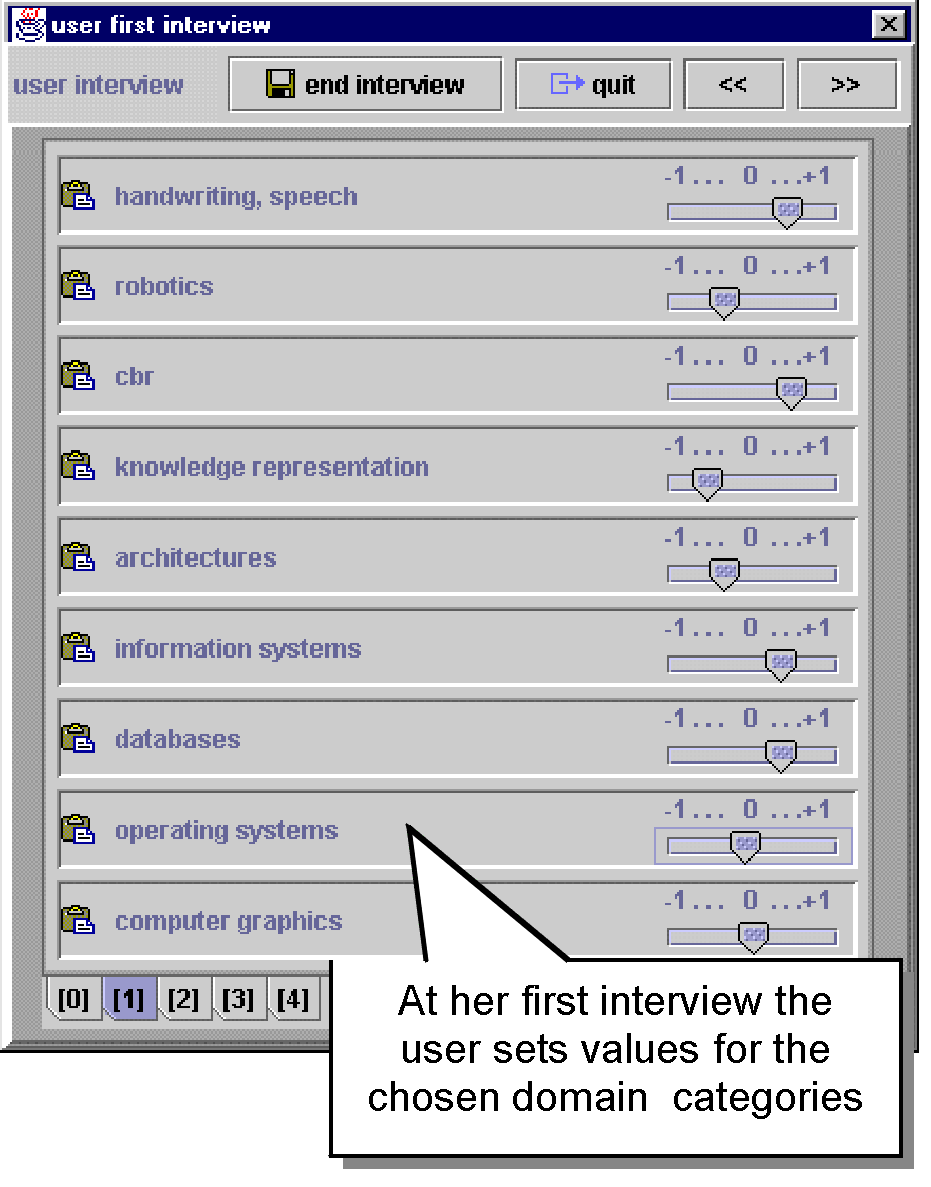

Figure 2. On the left, a screenshot from the interview to a new user (full size), on the right the system query interface (full size).

3. The User Modeling Component

The user modeling process entails identifying the current user, retrieving the relevant User Model (or performing a preliminary interview to create one if none exists) then updating the model on the basis of how users interact with the system and, lastly, furnishing data to answer explicit requests about the user made by the host system. Our User Modeling subsystem like other systems proposed in literature (see, for example, [Tasso:94] ), extends its beliefs about the user by relying on a set of stereotypes. A stereotype is the formal description of a prototypical user of a given kind [Rich:83]. Stereotyping is a way of default reasoning about the user: by classifying the user we exploit a lot of default information we have on that class of users. This information may be revised later on by the system (inference activity, consistency checking) when it gets more accurate knowledge about user's interests. The reader interested in details about the inference mechanisms used to build the user model can look at [ewcbr:98]. In the user model are gathered the following items:

A content vector, that is an array of values that represents the information content suitable for the Vector space model matching, as explained in 4.; with paired justifications (They express the provenience of that element, if from initial interview or the current active stereotype, or feedback, etc.)

A list of currently active contexts. Contexts are initializated all the same for every user that has a non-zero value in her/his user model content vector for each cluster having one or more non-null contexts. Then these contexts are copied in the user's model and evolves indipendently according to the single user history.
A list of the currently active stereotypes.
A set of user keywords each weighted with a value representing its actual importance for the user. This elements are dinamically updated, inserted or deleted after the user feedback, not like the content vector's elements that are build once for all and only changes in weigthing are possible.

4. The Information Filtering Component

The Information Filtering task has been a major research field since the last ten years and is constantly growing thanks to the huge development of the Internet. For a brief introduction to the field see the classical [Belkin:92]. The approach used in this work is to combine together different contributes to the final filtering score. The difference with the classical vector approach lies in the objects that make up the vector elements. Practically a hash mapping is used to map words from documents in vector elements; once we obtain this transformation the classical vector space model is used, not considering anymore the items within the vector elements. Next we introduce this data structure.

4.1 The cluster vector

The Vector Space model (see [Salton:83]) has been kept as a basis thanks to its very well known reliability and room for improvement as constantly reported in the literature. The elements the vector is made up with are sets (called clusters) of pairs (term,context), with term a word and context an object whose purpose is to disambiguate possibly ambiguous terms using words before and after that word [2](see [Xu:97]). For instance, the term network can assume different meanings depending on the context where it is used. A naive IF system can assume that a document about neural networks is relevant for a query on computer networks. The clusters vector is build once for all during an initial phase of knowledge extraction from a corpus of documents on a particular domain. Also in this phase all the contexts are created examining each repetition of the same term in the corpus and measuring the distance between their contexts: if greater than a threshold parameter the two instances of the same term are thought to have different meaning, and their contexts kept separated, otherwise their contexts are merged in one (of course this is the basic mechanism; great improvements on efficiency are possible using simple practical assumptions). To recap:

a Context is an object that keeps trace of words used when referring to a particular instance of the ambiguous term in a text. Its use is motivated by the assumption that terms related to different meaning of a single word tend to occur together (see for example [Furnas:87]). For instance, a simple implementation of such a data structure could be a weighted list of words.
a T-C pair is a pair of (term,context) used to disambiguate the term applying its context on the input document.
a Cluster of T-C pairs is a set of such elements clustered together for sinonimy. All the T-C pairs grouped together in a cluster are all the same for the system. This mechanism allows for simplification while the use of T-C pairs instead of simple terms gives higher precision to the clustering mechanism.

4.2 Document Representation

Referring to the figure 3, detailing the document processing module (a part of the External Retriever in the main architecture in figure 1), every text document in input is firstly transformed in a list of words obtained selecting only those which are not present in a list of useless words (also known as a stoplist). Then the words are matched against the term dictionary (this data structure is built during the domain learning phase and is needed here to access the idf, and other values for vector weigthing. To weigh the elements we use the standard tf idf product, with tf the term frequency in the document, and idf=log(n/df(i)) with n the number of documents in the collection and df(i) the number of documents in the collection who contain the word i, and pointers are obtained to words known to the system. Then each term is disambiguated using the known contexts for that term as explained in 4.2 . For instance, if the system has three different contexts associated with a single word the disambiguation step produces three values, representing the degree of fitness of that word occurence in the incoming text and the given context. In step (4) each pair (term,context) from the input document contributes to its belonging cluster weight with the values calculates in the third step. At the end of the process from the initial text document (e.g. in a HTML format) we have an array of values, each one for a cluster of (term,context) pairs.

4.3 A Case-Based Approach to Information Filtering

A possible case-based approach to the selection of the most suited documents, on the basis of the model of a particular user is introduced, described in two main steps: (i) the Document Categorization (retrieval phase) and (ii) the Score Refinement (adaptation phase).
The case library contains the old cases (obtained from the corpus documents, in this first case in the domain of computer science, chosen for being well-known and for the easyness in finding documents) in the form of frames, whose slots contain the <document representation,old solution> pairs. The old solution should be the "score" of the old document according to a given User Model.Since it is not feasible to represent the document score for each possible User Model, we have chosen to represent the "solution" part of the old cases as the category of the document.
The categorization module takes as input the same type of weights vector of the filtering module, but with different clusters, because it needs to match different features like authors, type of documents, etc. in the incoming document. When the system is presented with a pattern of attributes relative to the particular document, the indexing module tries to find the old case that more closely matches (according to a specific metric) the new case. The selected old case contains the relevant information useful for classifying the document, i.e. the most suited category (or categories).

4.4 The filtering mechanism

To map the array of values - one for each category - coming as the categorization module output into stereotypes, a matrix is used, with each element representing an importance weight for that category in the given stereotype crossing the matrix coloumns of the currently active stereotypes (one or more coloumns) with the highest category value (one row of this matrix) .
The approach just described entails the definition of a metric to be used in the indexing module. The problem is that this sort of classification must be made in presence of incomplete and contradictory information. Our proposed solution, consists in the use a function-replacing hybrid, where an artificial neural network implements (i.e., is functionally equivalent to) the part represented in figure 3. The old cases present in the library of cases have been gathered from a domain expert, and have been used as training records for training the neural network. The knowledge of the Case Library is therefore represented in a monolytic way into the weights of the network. Referring to the same figure, the network replaces the indexing metric with a mechanism of generalisation typical of these objects.
The filtering mechanism is described in figure 3. For the current document the categorization module returns a score based on its output and the list of active stereotypes present in the user model. Only if the first stage returns a score higher than a given threshold the second step takes place. Three different modules process the document (represented differently for each module) returning three scores that combined linearly with given weights make up the final score. The three different modules work indipendently each one performing the filtering based on a different perspective [3]:

The vector filter module transforms the document in an array of values that maps on the Clusters array as described in 4.1. This kind of filtering is performed using the standard techinques in the IR field The query module uses a list of words representation of the document and essentially counts the occurrences of the terms in the user query. Despite it may seems redundant when using the system coupled with a search engine with the user query posted on it.
The user keywords module matches each document word against a list of weighted keywords in the user model producing the total normalized sum of each occurring word's weight.
The user query module matches each document word against the words in the query.

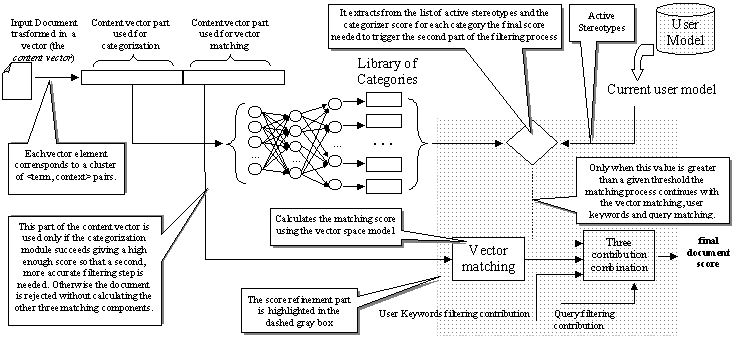

Figure 3. The Process of Score Refinement highlighted in the dashed grey box. (full size)

5. Empirical Evaluation

A first evaluation of our system has been conducted through real-time access to the World Wide Web. This activity has been performed as a matter of a preliminary testing and a more extensive evaluation is needed, using a better comparison parameter than AltaVista (that is not user-adaptive).
During the tests, one user has searched various kinds of information concerning his interests (15 queries) on the Web. He has personally analyzed all filtered documents giving the relative relevance feedback to the system. After each filtering process we have obtained the rank ordered list of the documents, given by the user. Then the following distance function, between the AltaVista ordering and the system ordering has been computed (following [Newell]): D(x,y) = sum_i^N₌₀ Z_i(x,y) Where Z_i = (|w_ii - w_jj||x_i = y_j), and w_i=(N-i)²/N². With x, y vectors representing the rank ordered lists to be compared and N is the number of the analyzed documents. No Precision/Recall measurements were made, only document rankings were measured.
The difference between the system and AltaVista samples have been evaluated using a non-parametric (or distribution-free) statistics (the Wilcoxon Signed-Rank test [Wilcoxon] where the reader is referred to for more detail concerning distribution-free statistics). Finally, the analysis of the statistical results have been performed to draw the statistical conclusion and the research conclusion. The null hypothesis H₀ in our experiment is the following: ``There is no difference in performance between our system and AltaVista, measured in terms of document ranking (i.e., the statistical populations concerning the document ordering are the same)''. The alternative hypothesis H₁ is: ``The differences observed between the distributions of the document ranking are not due to chance but are due to the difference between the populations to which they belong''. The results of the Wilcoxon test are shown in Table 1. In the first row, the numerical values for the Wilcoxon T₊ parameter (the Wilcoxon valuator, see [Wilcoxon]) for the distance function is shown. In the second row the calculated probability is presented. It is less than the significance level we set to 0.05 at the beginning of the experiment.
Therefore, we can conclude that, the null hypothesis H₀ can be rejected and the alternative hypothesis H₁ can be accepted. This means that the differences observed from the sample sets are not due to chance, but to different underlying distributions to which they belong. The above statistical results support our choice of using a case-based approach to user modeling for adaptive systems.

*Table 1*
*Wilcoxon Test results.*
	Distance Function
T₊	90
P_r(T₊>c)	0.0473
H₀	rejected
H₁	corroborated

6. Conclusions

In this paper we have described a Case-based approach to the construction of a Information Filtering system, capable of selecting and ordering HTML/text documents collected from the Web, according to the "information needs" of the User, represented in a User Model. Our system is based on a hybrid arcitecture, where an artificial neural network is integrated into a case-based reasoner. One advantage of this architecture is the inherent fault tolerance to noise in data representing user behavior, which allows the system to ``gracefully degrade''.
The experiments have shown that, thanks to the case-based User Modeling component, our Information Filtering system improves the capabilities of AltaVista by more than 30%. In our work, we have turned to statistics to analyze the system behaviour, and demonstrated that the system performance "is not due to chance''.
A more extensive test of the system has been planned as a future work. We have also planned to develop and evaluate further features with the goal of improving the performance of both modeling and filtering processes. As for the modeling process, we are improving the modeling capabilities of the users by using a dynamic updating process of the user model. As far as the filtering process is concerned, we are integrating the query modality with the surfing modality to obtain a system able to autonomously retrieve and filter documents.

References

[um:97] Ambrosini, L., Cirillo, V. and Micarelli, A.: A Hybrid Architecture for User-Adapted Information Filtering on the World Wide Web. Proc. of The 6th International Conference on User Modeling UM-97, Chia Laguna, Sardinia, Italy, June 1997.
[Belkin:92] Belkin, N.J., and Croft, W.B.: Information Filtering and Information Retrieval: Two sides of the Same Coin?. Communications of the ACM,35(12), 1992, pp. 29-38.
[Tasso:94] Brainik, G. and Tasso, C.: A shell for developing non-monotonic user modeling systems. International Journal of Human-Computer Studies, 40, 1994, pp. 31-62.
[Furnas:87] Furnas, G.W., Landauer, T.K., Gomez, L.M. and Dumais, S.T.: The Vocabulary Problem in Human-System Communication. Communications of the ACM, 30(11), 1987, pp. 964-971.
[Haykin:94] Haykin, S. Neural Networks - A Comprehensive Foundation. Prentice Hall International, 1994.
[kobsa:89] Kobsa, A. and Wahlster, W. (eds.): User Models in Dialog Systems. Springer-Verlag, 1989.
[ewcbr:98] Micarelli, A., Sciarrone, F., Ambrosini, L. e Cirillo, V.:``A Case-Based Approach to User Modeling''. In: B. Smyth e P. Cunningham (eds.) Advances in Case-Based Reasoning, Proc. of EWCBR-98, Lecture Notes in Artificial Intelligence, 1488, Springer-Verlag, Berlin, 1998, pp. 310-321.
[mulnig:96] Mulhem, P. and Nigay, L. : Interactive Information Retrieval Systems.Proc. of SIGIR 96, August 1996, Zurich, Switzerland, pp 326-333.
[morshi:96] Morita, M. and Shinoda, Y. : Information Filtering Based on User Behaviour Analysis and Best Match Text Retrieval. Japan Advanced Inst. of Science and Technology Techincal Report, 15 Asahi-dai, Tatsunokuchi,Ishikawa 923-12 Japan
[Newell] Newell, S.C.: User Models and filtering Agents for improved Internet information retrieval. User Modeling and User-Adapted interaction, 7, 1997,pp. 223-237.
[Rich:83] Rich, E.: User are Individuals: Individualizing User Models. International Journal of Man-Machine Studies, 18, 1983, pp. 199-214.
[Salton:83] Salton, G. and McGill, M.J.: Introduction to Modern Information Retrieval. McGraw-Hill Publishing Company, NewYork, NY, 1983.
[xu:97] Xu, J.: Solving the Word Mismatch Problem Through Automatic Text Analysis. PhD Dissertation, Dept. of Computer Science, University of Massachussets, Amherst, May 1997.
[Wilcoxon] Wilcoxon, F: Probability Tables for individual Comparisons by Ranking Methods. Biometrics, 3,1947, pp.119-122.

Notes:

Throughout all the system the values used are ranging from -1 (dislike) to +1 (like) if not otherwise specified.
Usually the context field is empty because very few are the potentially ambiguous terms encountered during filtering.
Each module sharing a common mechanism for weighting words with their actual importance in the document -for instance, words appearing in the title in a HTML page are considered more important than words in a paragraph.
