04: Tran_Square

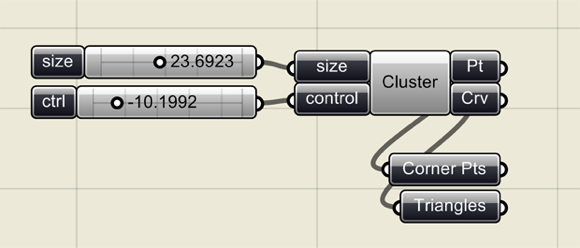

Tran_Square Definition    download .ghx

Four polygons, each having one right angle, can be arranged in spiral pattern around a square.

Changing the size of the square moves the polygons such that they model a shutter. Polygon sides appear to slide along each other. A parametric model for this is almost trivial.      ... more on Design Patterns CA

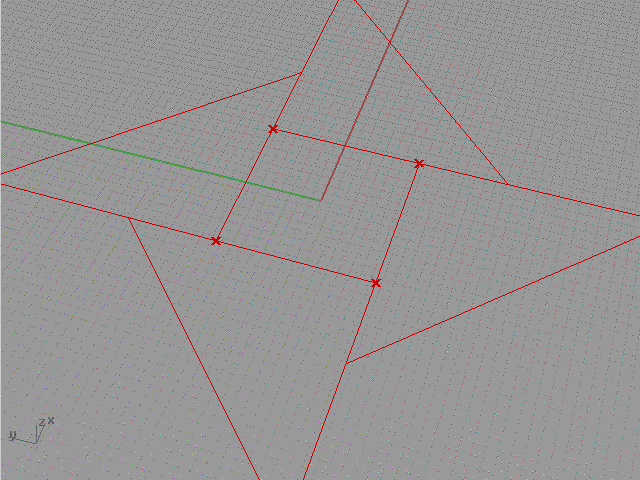

Tran_Square Manipulations
