05: RepoSnapper

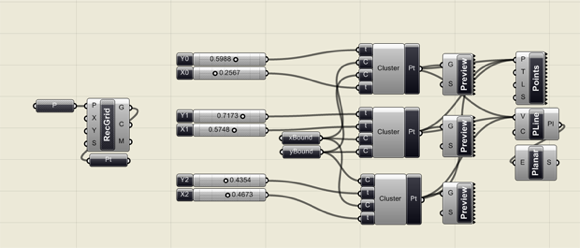

RepoSnapper Definition    download .ghx

Parametric "sketches" (yes, a parametric model can be sketch-like!) are continuous. They may be abstracted into a discrete system, such as a grid. This Reporter maintains the original model and ability to smoothly interact with it and reports the model as it would appear were it snapped onto a specified grid. The reporting occurs in two steps. First, report the position of the original triangle in a new coordinate system. Second, select and report the nearest point on the grid to each triangle vertex. Construct the reported triangle on these abstracted points.      ... more on Design Patterns CA

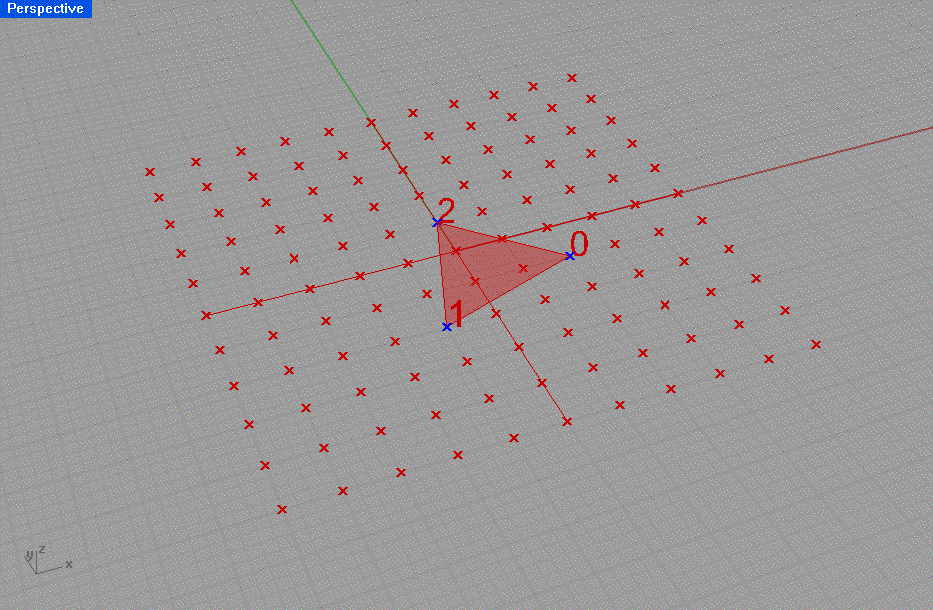

RepoSnapper Manipulations
