02: RepoFabrication

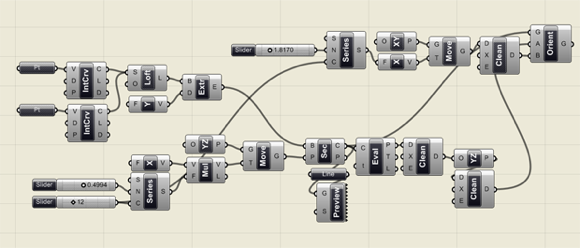

RepoFabrication Definition    download .ghx

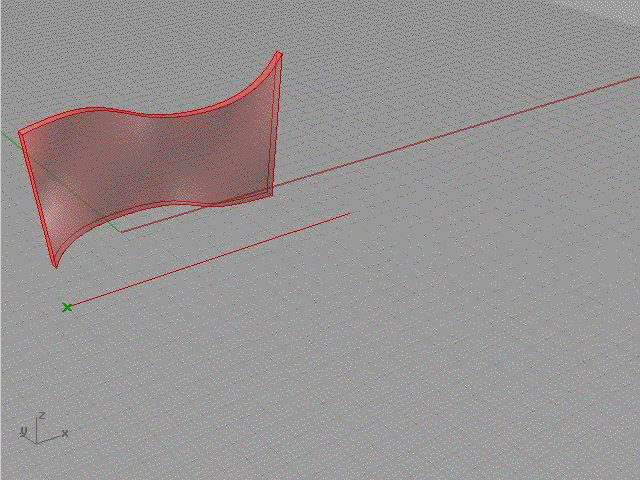

Slicing a solid with planes gives a set of closed curves. A common fabrication technique is to use such curves to cut stations out of a sheet material and use the stations as internal formwork that is covered with other sheet or strip material. The curves forming the stations can be reported in variety of ways, in both 2D and 3D and through mediating transformations. In this sample, one report is a scaled 3D version and the other is a 2D layout suitable (to a first approximation) as a cutting plan from sheet material.     ... more on Design Patterns CA

RepoFabrication Manipulations
