Projection    Example Index: |  1  |  2  |  3  |

01: ProjPointPost

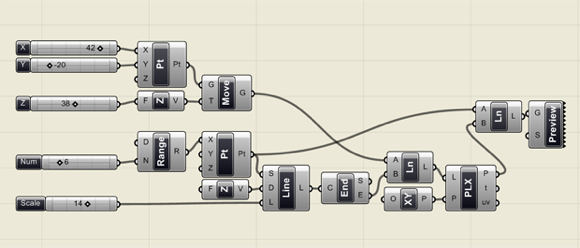

ProjPointPost Definition    download .ghx

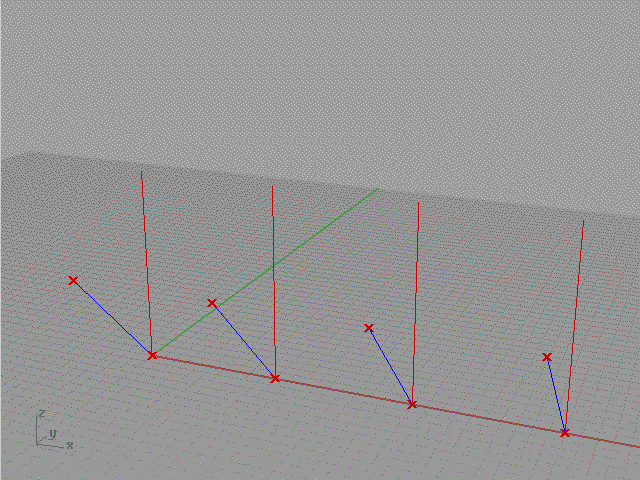

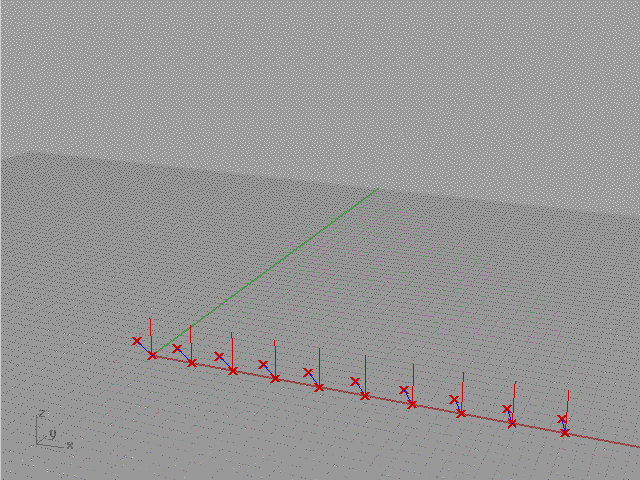

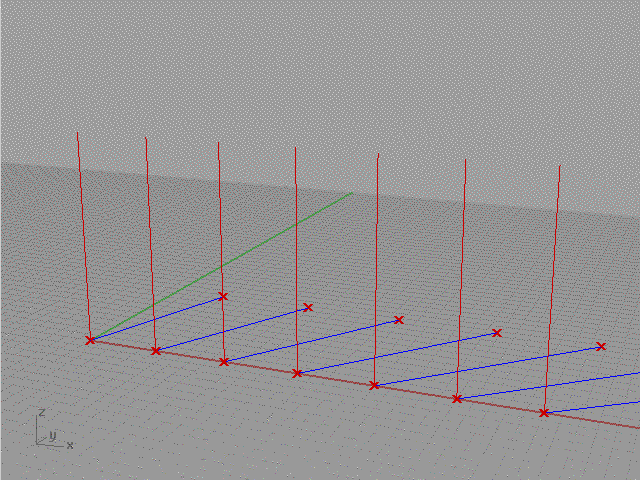

Start from a line (as the abstraction of a post) standing vertically on the XY-plane. Define a free point as the moving light. The shadow point is the projection of the free point onto the XY-plane. The shadow is a line between the base of the post and its shadow point. Replicating the startpoint of the posts gives a row of posts, each with its own shadow. In this case, the source is the free point, the projection is a perspective projection through the source and the receiver is the XY-plane.      ... more on Design Patterns CA


ProjPointPost Manipulations


ProjPointPost Manipulations


ProjPointPost Manipulations
