Each member of a truss might carry information such as the section of the member its moment of inertia, material and modulus of elasticity. In addition, the parametric model for truss members may be able to shape its ends depending on the context in which it is placed. Placing a truss member though requires only the baseline along which the member lies. First, develop a feature representing a truss member and requiring only a line as a geometric input. Second, (and in a new model!) create an abstract truss comprising line segments to represent the truss members.      ... more on Design Patterns CA

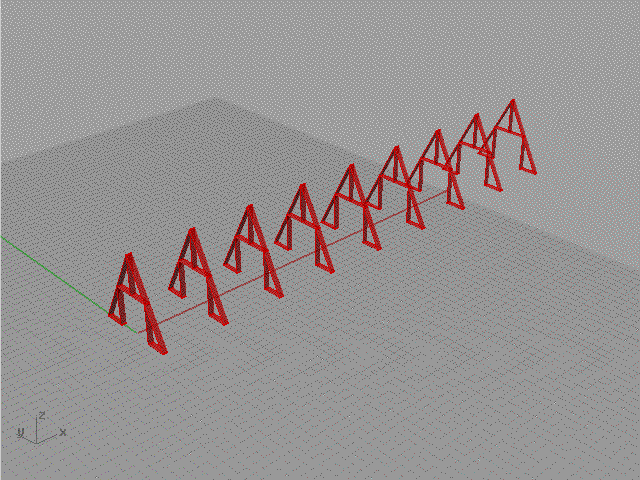

PlHoTrussSystem Manipulations

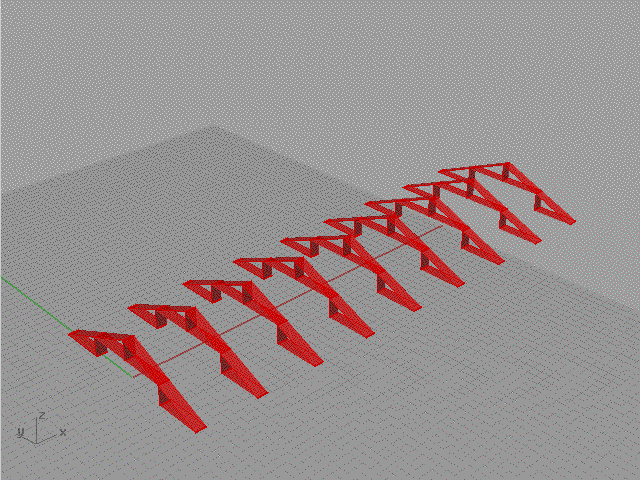

PlHoTrussSystem Manipulations

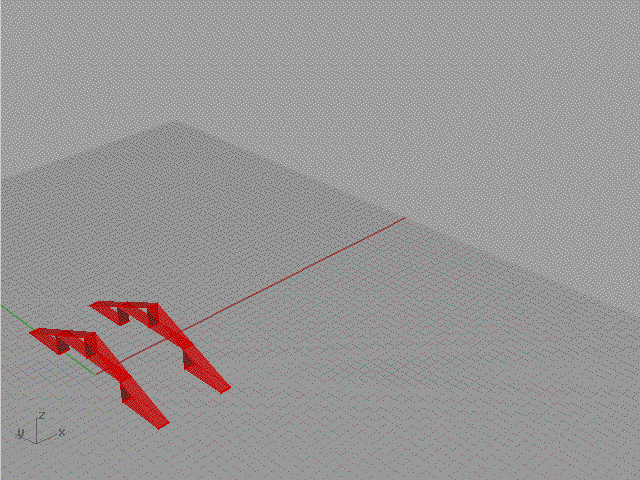

PlHoTrussSystem Manipulations
